Shear Force Testing Machine
Service line

400-1088-778 / 0757-85588578

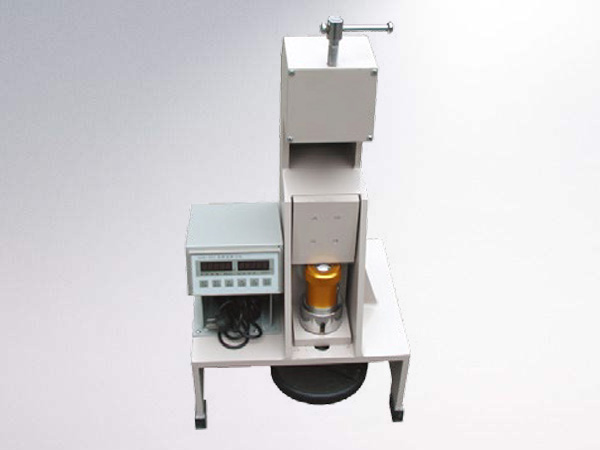

JYT.T240 SHEAR FORCE TESTING MACHINE

Model
JYT.T240
Standard Length of Profiles
100 mm
Profile Cross Section (Maximum)
240 × 180 mm
Height Variance of Thrust
0 ~ 40 mm
External Load of the Pressure Sensor (Maximum)
1000 kg
Electric Supply
100 W 220 V 50 Hz
Dimension (L*W*H)
400 × 350 × 780 mm
Weight
70 kg Approx.

JYT.T300 SHEAR FORCE TESTING MACHINE

Model
JYT.T300
Standard Length of Profiles
100 mm
Profile Cross Section (Maximum)
400 × 500 mm
Height Variance of Thrust
0 ~ 40 mm
External Load of the Pressure Sensor (Maximum)
1000 kg
Electric Supply
100 W 220 V 50 Hz
Dimension (L*W*H)
490 × 550 × 900 mm
Weight
160 kg Approx.
